The system is easy to set up, optimizes sound quality, and is plug and play. After turning on the power, the transmitter and receiver will automatically match. Simple setup, multiple uses. Suitable for stage, recording studio, band rehearsal, live performance
Product DescriptionTechnical ParametersFunctional Features

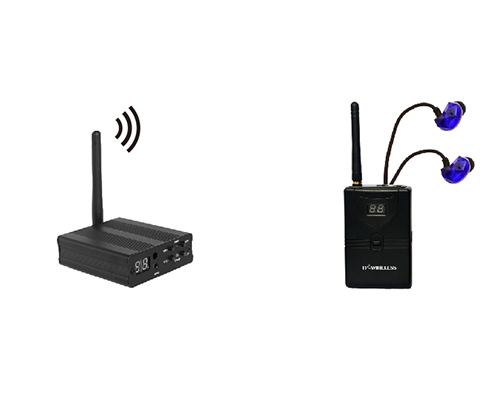

Digital wireless stage audio monitoring system is suitable for stage, recording studio, band rehearsal, live performance.
Transmitter: • Frequency range: 2400MHz~2483MHz • Power supply: DC 5V/500mA • Transmitting power: ≤20dB • Operating range: 30 meters
Receiver: • Frequency range: 2400Mhz~2483MHz • Power supply: DC 3V (2 AA batteries) • Frequency response: 20Hz~20KHz • Signal-to-noise ratio: 89dB • Distortion: 1.5%@1KHz
·2.4GHz is a legal and free ISM frequency band worldwide. ·Different from the analog signal of UHF equipment, 2.4GHz can realize digital transmission. ·The sampling rate is 64K@16bit * 2, we call it HDCD sound. ·Delay time: 1.1~2ms, which is the shortest delay time in this field. ·The actual test signal-to-noise ratio is 89dB, and the actual test distortion is 1.5%. ·Up to 6 units can be used at the same time without interfering with each other. ·Multiple receivers can be operated with a single transmitter within the working range. ·The receiver has been adopted by APEC2014 for simultaneous interpretation and deployment of personnel.
